Cr-Mo Concaves Of Ball Mill Alloy Steel Castings With Impact Value AK100J

1. Hardness difference from surface to center is less than HRC2.

2. The steel liners have higher reliability in AG mills and SAG mills.

3 The Pearlitic Cr-Mo Alloy Steel mill liners are widely used for AG mills, SAG mills, large ball mills.

The general advantages in ball mills are as follows:

The additional advantages in cement mills are as follows:

Materials 1: Double-Media Quenching Chromium-Molybdenum Alloy Steel Series

We specially design the material for ball mill liners in mines, coalfired power plants and cement plants, etc.. With our

special double-media quenching process, the material can not only achieve ideal hardness (HRC48~55) but also ideal

toughness value (AK30~100J). It can completely meet the requirement of liners of large and middle-size ball mills at home

and abroad. The match of Middle Chrome Liners and High Chrome Cast Balls has been the typical model in coal mills and

cement mills. Meanwhile, the material is applicable to the teeth plates, armored plates and hammers of crushers and

excavator bucket teeth.

Materials 2: Pearlitic Chromium-Molybdenum Alloy Steel Series

The Pearlitic Chromium-Molybdenum Alloy Steel Liners are widely used in AG Mill,SAG Mill and Ball Mills.

Hardness: HB310-375 (equivalent to HRC33-42)

Impact resistant Value: Ak≥60J (60×10×10mm) in normal ambient temperature.

We can produce pearlitic Cr-Mo steel as per AS2074 Gr. L / 2B.

Materials 3 : High Chrome White Iron Series

High Chrome white iron we can produce include 15%Cr, 18%Cr, 20%Cr and 26%Cr. Under same working condition, the

wear performance of High Chrome mill liners is four times of that of high manganese steel liners and twice of that of low

Chrome alloy steel liners.Meanwhile, we can produce high Chrome castings as per AS2027, ASTM A532 and BS4844.

Technical Parameters

Wuxi Orient Anti-wear Engineering Co., Ltd.

Chemical Composition & Mechanical Property of Wear-resistant Castings

Wuxi Orient Anti-wear Co., Ltd.

We are a  specialized manufacturer of wear and heat resistant castings. Our main products are Mill Liners for Ball

Mills,SAG Mills,AG Mills,Crusher Wear Parts and Grinding Media.

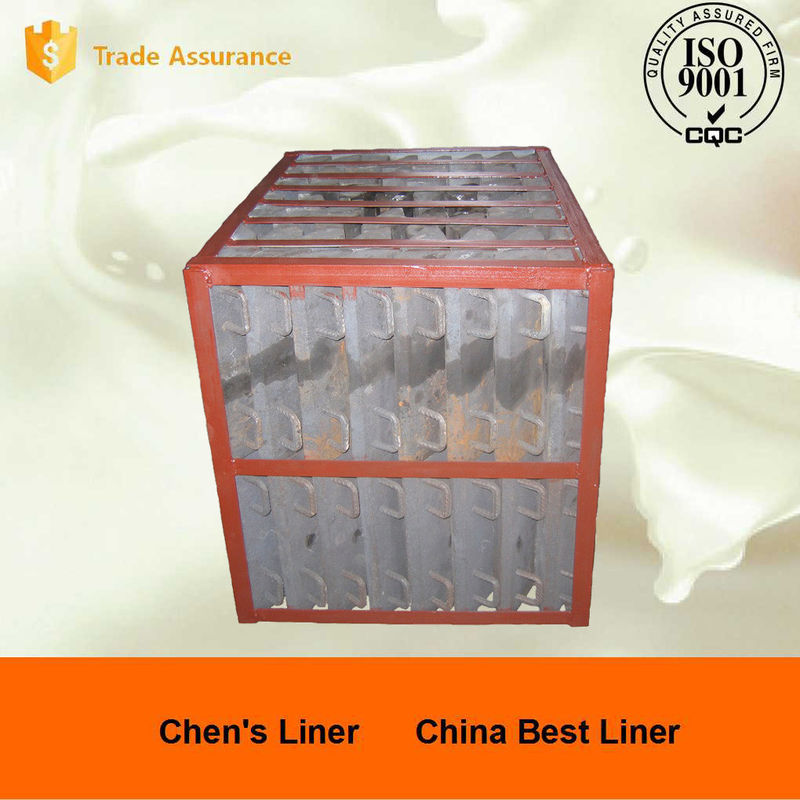

1.  The Combined Self-fastened Boltless Ball Mill Liners

 This product, invented by Mr. Chen Chang-shun, senior engineer and the director of the company, is known

as “China Best Liner”. It includes two parts, high wear resistance boltless plates, and highly expandable riveting

plates, which are self-fastened and strengthened to withstand impact from mill balls.

In the recent 20 years, our liners have been widely used in large, medium and small ball mills in Chinese power

generation, mining, cement, chemical engineering and metallurgical industries and super fine pulverizing

equipments. It is the only recommended liner product in the latest standard of the electric-power industry in China.

2.  Materials 1: Martensitic Chromium-Molybdenum Alloy Steel Series

 We specially design the material for ball mill liners in mines, coal-fired power plants and cement plants, etc..

With our special double-media quenching process, the material can not only achieve ideal hardness (HRC48~55)

 but also ideal toughness value (AK30~100J). It can completely meet the requirement of liners of large and

middle-size ball mills at home and abroad. The match of Middle Chrome Liners and High Chrome Cast Balls has

been the typical model in coal mills and cement mills. Meanwhile, the material is applicable to the teeth plates,

armored plates and hammers of crushers and excavator bucket teeth.

3.  Materials 2: Pearlitic Chromium-Molybdenum Alloy Steel Series

 The Pearlitic Chromium-Molybdenum Alloy Steel Liners are widely used in AG Mill,SAG Mill and Ball Mills.

Hardness: HB310-375 (equivalent to HRC33-42)

Impact resistant Value: Ak≥60J (60×10×10mm) in normal ambient temperature.

4.  Materials 3 : High Chrome White Iron Series

High Chrome white iron we can produce include 15Cr, 18Cr, 20Cr and 26Cr. Under same working condition, the

 wearperformance of High Chrome mill liners is four times of that of high manganese steel liners and twice of that

of low Chrome alloy steel liners.

 Meanwhile, we can produce high Chrome castings as per AS2027, ASTM A532 and BS4844.

 We produced Cr26 Mill Liners for Coal Mills for Chinese Power Plant.

 5.  Material 4: Nickel-hard Cast Iron Series

The hardness of Ni-hard cast iron series is more than HRC56.

Our materials conform to GB/T 8263-1999, AS2027/Ni-Cr1-550, AS2027/Ni-Cr1-550,

AS2027/Ni-Cr4-500, AS2027/Ni-Cr4-600, AS2027/Ni-Cr4-630, ASTM A 532 1-A,B,C,D,

ASTM A 532 2-A,B,C,D,E, ASTM A 532 3-A, G-X 260 NiCr42, G-X 330 NiCr42, G-X 300 CrNiSi952.

6.  We produced Cement Mill Liners for Conch Cement Group, the largest Chinese cement maker.

7.  Wear Parts for Crusher

 Jaw plates and cheek plates for jaw crushers, blow bars and impact plates for impact crushers, cone liners for

gyratory crushers, hammers for hammer crushers and concaves and mantles for cone crushers.

Depending on the specific working conditions, all wear parts can be ordered as Manganese Steel, high Cr cast

iron or Cr-Mo Alloy Steel.

8.  Customer-made Mill Liners

In addition to our patented Boltless Mill Liners, we can produce wear castings as per the request of customers.

So far, we have been the regular suppliers of mill liners for Magotteaux and Foster Wheeler Power Group. Now,

we have supplied steel caps inserted in rubber lifters for SAG mills and AG mills to some mines in Australia and

New Zealand.

For any questions or inquiries, please let us know.

You're welcome to visit our foundries.

We sincerely hope to provide you good castings and services with our wear expertise.
