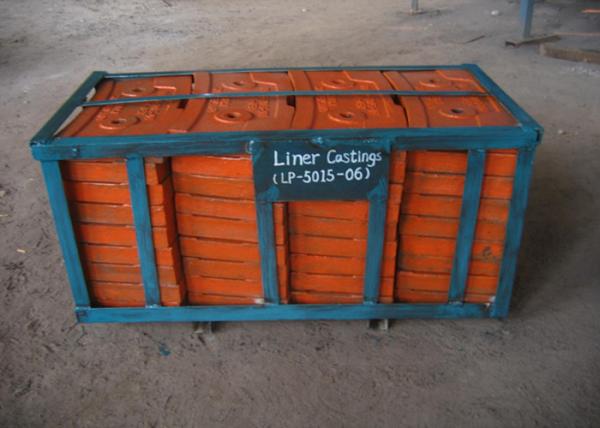

Pearlitic Alloy Steel Castings Lifter Bars With Hardness More Than
HB320
1. Hardness difference from surface to center is less than HRC2.
2. The series are designed for high abrasion performance.
3. Hardness:HRc33-43,
4. Impact value:AK≥60J.
5.The bolt holes are clean, smooth.
The Combined Self-fastened Boltless Ball Mill Liners
This product, invented by Mr. Chen Changshun, senior engineer and
the director of the company,
is known as“China Best Liner”.It includes two parts, high wear resistance
boltless plates, and highly
expandable riveting plates, which are self-fastened and strengthened to withstand impact from
mill balls.
We possess famous patented product------
Combined Self-fastened (Boltless) Ball Mill Liners, or called CHINA BEST LINER.
In 2012, we registered a new patent about Liner Technology.
In December of 2000, we successfully registered the international
patent in Canada.
In 1988 and 1997, we claimed domestic patents for ball mill liners
.
The outstanding advantage of our liners is boltless.
The general advantages in ball mills are as follows:
Output Increased | 5~20% |
Power Consumption Reduced | 5~20% |
Maintenance Decreased | Above 98% |
The liners are easily installed and existing mills need no
modification. |
The additional advantages in cement mills are as follows:
No leakage of slurry |
No repairs during service periods |
Better reliability and stability |
Production Improvement |
Noise reduction |
In the recent 20 years, our liners have been widely used in large,
medium and small ball mills in Chinese
power generation, mining, cement, chemical engineering and metallurgical
industries and super fine
pulverizing equipments.It is the only recommended liner product in the latest standard of
the electric-power
industry in China.
Materials 1: Double-Media Quenching Chromium-Molybdenum Alloy Steel
Series
We specially design the material for ball mill liners in mines,
coalfired power plants and cement plants,
etc.. With our special doublemedia quenching process, the material can not
only achieve ideal hardness
(HRC48~55) but also ideal toughness value (AK30~100J). It can completely meet the
requirement of liners
of large and middle-size ball mills at home and abroad. The match of Middle Chrome Liners and High
Chrome Cast Balls has been the typical model in coal mills and cement mills. Meanwhile, the material is applicable
to the
teeth plates, armored plates and hammers of crushers and excavator bucket teeth.
Materials 2: Pearlitic Chromium-Molybdenum Alloy Steel Series
The Pearlitic Chromium-Molybdenum Alloy Steel Liners are widely
used in AG Mill,SAG Mill and Ball Mills.
Hardness: HB310-375 (equivalent to HRC33-42)
Impact resistant Value: Ak≥60J (60×10×10mm) in normal ambient
temperature.
We can produce pearlitic Cr-Mo steel as per AS2074 Gr. L / 2B.
Materials 3 : High Chrome White Iron Series
High Chrome white iron we can produce include 15%Cr, 18%Cr, 20%Cr
and 26%Cr. Under same working
condition,the wear performance of High Chrome mill liners is four times of
that of high manganese steel
liners and twice of that of low Chrome alloy steel liners.Meanwhile, we can produce high Chrome
castings as per
AS2027, ASTM A532 and BS4844.
Customer-made Mill Liners
In addition to our patented Boltless Mill Liners, we can produce
liners as per the request of customers.
So far, we have been the regular suppliers of mill liners for
Magotteaux and Foster Wheeler Power Group.
Now, we have supplied steel caps inserted in rubber lifters for SAG
mills and AG mills to some mines in
Australia and New Zealand.
Wear Parts for Crusher
Jaw plates and cheek plates for jaw crushers, blow bars and impact
plates for impact crushers,
cone liners for gyratory crushers, hammers for hammer crushers and concaves and mantles for
cone
crushers.Depending on the specific working conditions, all wear parts can be
ordered as Manganese
Steel, high Cr cast iron or Cr-Mo Alloy Steel.
Technical Parameters
Our foundry has complete melting, heat treatment and test
equipments, such as mid-frequency induction
electrical furnaces, quenching and tempering furnaces, blast shot,
spectrometer, Rockwell and Brinell
Hardness tester, impactor,UT tester and metallographic microscope. We achieved the
certificate of quality
management system ISO 9001:2000.We have been exporting castings to oversea markets, such as Brazil,
Australia and South Africa.
